What is the difference between BPEL, BPMN and BPM?

To understand the differences between BPEL, BPMN, and BPM, it's important to delve into their purposes, functionalities, and the contexts in which they are used.

BPEL (Business Process Execution Language)

• Purpose: BPEL is an OASIS standard executable language designed to specify actions within business processes, particularly those involving web services. It is used for orchestrating web service interactions and automating business processes25.
• Execution: BPEL processes are executable and typically used in integration scenarios, such as composing low-level services to expose coarse-grained business services. It has a block-structured approach and is often preferred by developers due to its XML-based syntax and Java-like try-catch exception semantics345.
• Use Cases: Ideal for system-centric processes, simple workflows, and integrating web services. BPEL processes are usually invoked when service orchestration is needed and are less suited for complex human interactions14.

BPMN (Business Process Model and Notation)

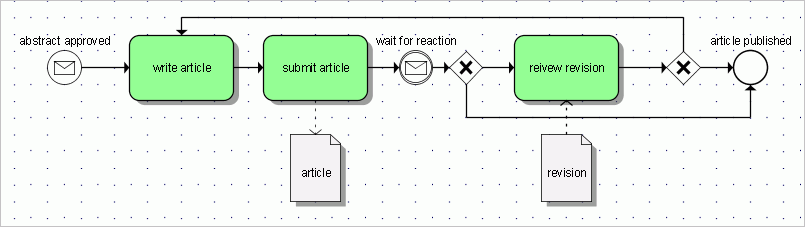

• Purpose: BPMN is a graphical representation standard for business processes. It is designed to be understandable by both business users and IT professionals. BPMN 2.0 has evolved to include execution semantics, making it an executable language as well4.
• Modeling: BPMN uses a more flexible and visual approach with swimlanes, which clearly show the roles involved in each step of the process. This makes it easier for business stakeholders to participate in process modeling and understanding. BPMN supports dynamic and complex human interactions and is not restricted to a block structure134.
• Use Cases: Suitable for business processes that involve multiple roles, complex human interactions, and processes that span across organizational boundaries. BPMN is also used for process documentation and promoting shared understanding of business processes4.

BPM (Business Process Management)

• Purpose: BPM is a holistic approach to managing business processes, encompassing the entire lifecycle from design and modeling to execution and monitoring. It involves both the business and IT departments to ensure alignment and efficiency.
• Scope: BPM includes various tools and methodologies, such as BPMN for modeling and BPEL for execution, to manage and improve business processes. It is not a specific language but a broader discipline that incorporates multiple standards and technologies134.
• Use Cases: BPM is essential for any organization looking to streamline its processes, improve efficiency, and ensure that business processes are aligned with the organization's goals. It involves continuous improvement and monitoring of processes.

Key Differences

• Execution vs. Modeling:

  • BPEL is primarily an execution language focused on automating and orchestrating web service interactions.
  • BPMN is both a modeling and execution language, with a strong focus on visual representation and business user involvement.
  • BPM is a management discipline that encompasses both modeling and execution, as well as other aspects of process lifecycle management.

• User Involvement:

  • BPEL is more IT-centric and less accessible to non-technical business users.
  • BPMN is designed to be understood by both business users and IT professionals, facilitating collaboration.
  • BPM involves both business and IT stakeholders throughout the process lifecycle.

• Process Complexity:

  • BPEL is better suited for structured, system-centric processes.
  • BPMN is more flexible and suitable for processes with complex human interactions and dynamic workflows.
  • BPM can handle a wide range of process complexities, from simple to highly complex.

In summary, while BPEL and BPMN are specific standards for executing and modeling business processes, BPM is the overarching framework that integrates these standards to manage and improve business processes comprehensively.
